63.9364-21 | Stäubli Electrical Connectors
4.5 mm socket header, solder connection, black, 63.9364-21
Order No.: 86F9567
EAN: 4099891767884
MPN:
63.9364-21
BL2-6/20-0,65 SCHWARZ
Series: Test & Measurement
Unit Price (€ / pc.)
23.0027 € *
Available: 22 pcs.
Total Price:
23.00 € *
Price list
Quantity
Price per unit*
1 pcs.
23.0027 €
25 pcs.
21.0154 €
50 pcs.
19.7064 €
100 pcs.
18.3974 €
500 pcs.
17.0765 €
*incl. VAT plus shipping costs
Subject to prior sale

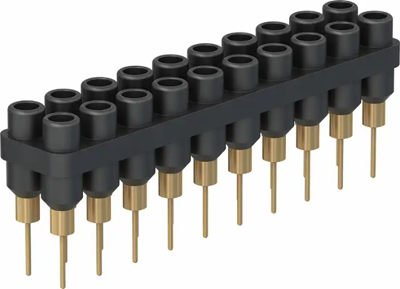

Socket strip, 63.9364-21, Stäubli Electrical Connectors
This 20-pole socket strip consists of 2 rows of 10 rigid sockets with solder connection. Individual socket mounting is unnecessary due to simplified panel drilling, orientation of solder connections, and compact mounting with just 5 screws. With socket spacings 6 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | gold-plated | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 10 A | |
| Touch safe | No | |
| Stackable | No | |
| diameter | 4.5 mm | |
| Length | 59.6 mm | |
| Connection | solder connection | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
