63.9356-22 | Stäubli Electrical Connectors
4.5 mm socket header, solder connection, red, 63.9356-22
Unit Price (€ / pc.)
   22.6576 €  *
   Standard delivery time from the manufacturer is: On Request
 Total Price:
  22.66 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 22.6576 €
 25 pcs.
 21.3010 €
 50 pcs.
 19.9801 €
 100 pcs.
 18.6592 €
 500 pcs.
 17.3145 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Female header, 63.9356-22, Stäubli Electrical Connectors

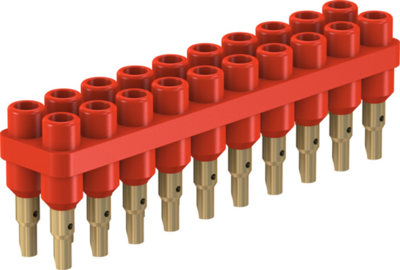

20-pole socket strips, consisting of 2 rows of 10 rigid sockets with solder connection. No need for individual mounting of sockets: Simplified panel drilling, orientation of solder connections and compact mounting with only 5 screws.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| diameter | 4.5 mm | |
| Length | 19 mm | |
| contact surface | gold-plated | |
| Colour | red | |
| Stackable | No | |
| Rated current | 10 A | |
| Connection | solder connection | |
| Touch safe | No | |
| Version | socket header | |
| Rated Voltage | 30 VAC/60 VDC |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
