63.9318-21 | Stäubli Electrical Connectors
2 mm socket, solder connection, mounting Ø 3.9 mm, black, 63.9318-21
Unit Price (€ / pc.)
1.4637 € *
Available: 60 pcs.
Total Price:
1.46 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4637 €
25 pcs.
1.2495 €
100 pcs.
1.1543 €
500 pcs.
1.0948 €
1000 pcs.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale

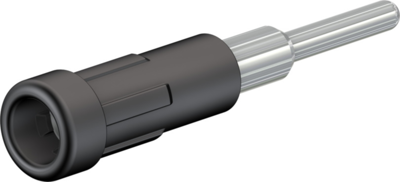

2 mm Socket, 63.9318-21, Stäubli Electrical Connectors
Insulated, Ø 2 mm rigid. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Connection: Solder pin Ø 1.5 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2 mm | |
| Installation diameter | 3.9 mm | |
| contact surface | nickel-plated | |
| Rated Voltage | 30 VAC/60 VDC | |
| Touch safe | No | |
| Connection | solder connection | |
| Length | 24.5 mm | |
| Stackable | No | |
| Rated current | 10 A | |
| Colour | black | |
| Version | press-in socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
