49.7512 | Stäubli Electrical Connectors

Name: 2 mm socket, solder connection, mounting Ø 3 mm, 49.7512
Brand: Stäubli Electrical Connectors
SKU: 86F8026
Price: 0.31 EUR
Availability: InStock

2 mm socket, solder connection, mounting Ø 3 mm, 49.7512

Order No.: 86F8026

EAN: 4099889676198

MPN:

49.7512

LB2-D AU

Series: LB2-D

Image may differ

Key Specification:

Version socket

diameter 2 mm

Connection solder connection

contact surface gold-plated

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.3094 € *

Available: 232 pcs.

Next delivery: 200 pcs. on 2024-05-08

Leadtime: 2 Weeks **

Total Price:

0.31 € *

Price list

Quantity

Price per unit*

1 pcs.

0.3094 €

25 pcs.

0.2856 €

100 pcs.

0.2618 €

500 pcs.

0.2368 €

1000 pcs.

0.2118 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

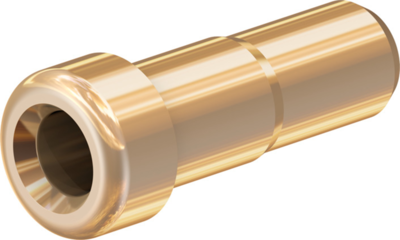

2 mm solder-in socket, 49.7512, Stäubli Electrical Connectors

Uninsulated Ø 2 mm rigid. Machined brass. The socket is soldered into predrilled panels.

Technical specifications

	Connection	solder connection
	Version	socket
	Rated Voltage	30 VAC/60 VDC
	Rated current	10 A
	Touch safe	No
	diameter	2 mm
	Installation diameter	3 mm
	contact surface	gold-plated
	Length	10 mm
	Stackable	No
