49.7092-25 | Stäubli Electrical Connectors

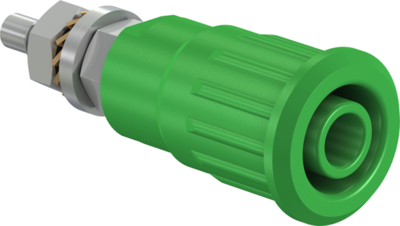

4 mm socket, screw connection, mounting Ø 12.2 mm, CAT III, green, 49.7092-25

Order No.: 86F8768
EAN: 842640111384
MPN:
49.7092-25
SEB4-G/N-X GRÜN
49.7092-25 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.4280 € *
Available: 18 pcs.
Leadtime: On Request **
Total Price:
1.43 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4280 €
20 pcs.
1.2138 €
100 pcs.
1.1067 €
500 pcs.
1.0472 €
1000 pcs.
0.9639 €
*incl. VAT plus shipping costs
**Subject to prior sale

4 mm Socket, 49.7092-25, Stäubli Electrical Connectors

Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is pressed into pre-drilled panels of plastic, metal, etc. Connection: Threaded bolt M4 and soldering hole.

Technical specifications
Colour green
Installation diameter 12.2 mm
contact surface nickel-plated
diameter 4 mm
Length 38.5 mm
Stackable No
Touch safe Yes
Version press-in socket
Connection screw connection
Rated Voltage 1000 V
Rated current 24 A
Rated category CAT III
Logistics
Customs tariff number 85369010
Original Packaging Bag with 20 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
