49.7080-25 | Stäubli Electrical Connectors

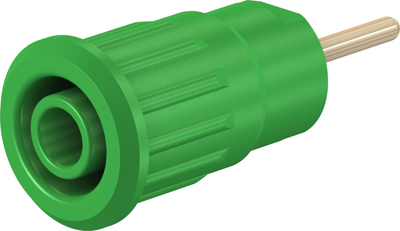

4 mm socket, round plug connection, mounting Ø 12.2 mm, CAT III, green, 49.7080-25
Unit Price (€ / pc.)
1.3209 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3209 €
20 pcs.
1.2019 €
100 pcs.
1.0948 €
500 pcs.
0.9758 €
1000 pcs.
0.9163 €
*incl. VAT plus shipping costs
Subject to prior sale
4 mm Socket, 49.7080-25, Stäubli Electrical Connectors

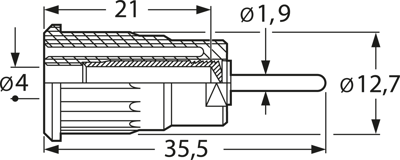

Insulated, Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Round connecting pin Ø 1.9 mm.
Technical specifications
| Colour | green | |
| Installation diameter | 12.2 mm | |
| contact surface | nickel-plated | |
| diameter | 4 mm | |
| Length | 35 mm | |
| Stackable | No | |
| Touch safe | Yes | |
| Version | press-in socket | |
| Connection | round plug connection | |
| Rated Voltage | 1000 V | |
| Rated current | 24 A | |
| Rated category | CAT III |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
| Original Packaging | Bag with 20 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
