49.7077-24 | Stäubli Electrical Connectors

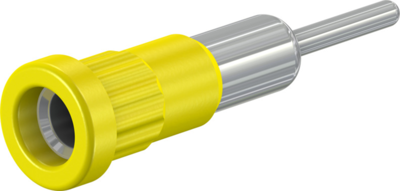

4 mm socket, round plug connection, mounting Ø 6.8 mm, yellow, 49.7077-24

Order No.: 86F8169
EAN: 4099889676778
MPN:
49.7077-24
EB4-A/N GELB
49.7077-24 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
4 mm socket, round plug connection, mounting Ø 8.2 mm, yellow, 64.3011-24
4 mm socket, round plug connection, mounting Ø 8.2 mm, yellow, 64.3011-24
Order No.: 22F7254
Manufacturer: Stäubli Electrical Connectors
per pc. 0.7259 € *

4 mm Socket, 49.7077-24, Stäubli Electrical Connectors

Insulated, Ø 4 mm, rigid. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Round connecting pin Ø 1.9 mm.

Technical specifications
Rated Voltage 30 VAC/60 VDC
Touch safe No
Connection round plug connection
diameter 4 mm
Stackable No
Installation diameter 6.8 mm
contact surface nickel-plated
Rated current 25 A
Colour yellow
Length 34.5 mm
Version press-in socket
Logistics
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
