49.7049-29 | Stäubli Electrical Connectors

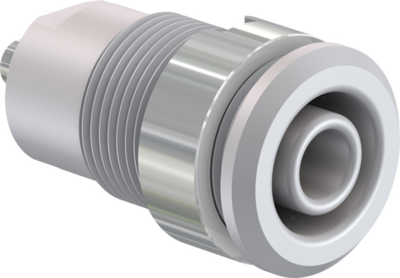

4 mm socket, solder connection, mounting Ø 12.2 mm, CAT III, white, 49.7049-29
Unit Price (€ / pc.)
1.4399 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.44 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4399 €
20 pcs.
1.2257 €
100 pcs.
1.1186 €
500 pcs.
1.0591 €
1000 pcs.
0.9758 €
*incl. VAT plus shipping costs
**Subject to prior sale
4 mm Socket, 49.7049-29, Stäubli Electrical Connectors
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into pre-drilled panels of plastic, metal, etc. Connection: Solder connection.
Technical specifications
| Colour | white | |
| Installation diameter | 12.2 mm | |
| contact surface | nickel-plated | |
| diameter | 4 mm | |
| Length | 27 mm | |
| Stackable | No | |
| Touch safe | Yes | |
| Version | socket | |
| Connection | solder connection | |
| Rated Voltage | 1000 V | |
| Rated current | 24 A | |
| Rated category | CAT III |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
