49.7046-20 | Stäubli Electrical Connectors

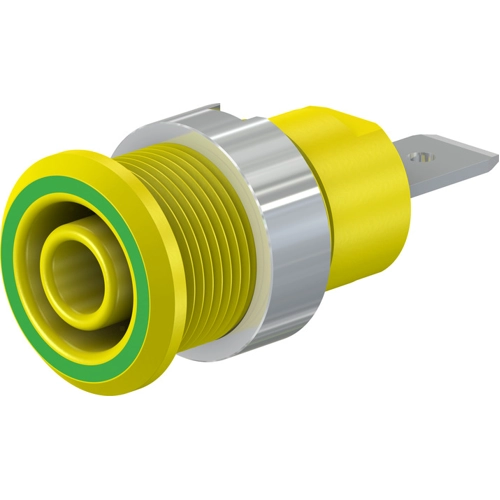

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, yellow/green, 49.7046-20
Order No.: 22F634
EAN: 842640110653
MPN:
49.7046-20
SLB4-F6,3/N-X GRÜN/GELB
Series: Test & Measurement
Unit Price (€ / pc.)
2.1063 € *
Available: 53 pcs.
Total Price:
2.11 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1063 €
20 pcs.
1.7850 €
100 pcs.
1.6303 €
500 pcs.
1.5232 €
1000 pcs.
1.4042 €
*incl. VAT plus shipping costs
Subject to prior sale
4 mm Socket, 49.7046-20, Stäubli Electrical Connectors
Insulated, Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into predrilled panels of plastic, metal etc. Flat connecting tab 6.3 mm x 0.8 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| Rated current | 32 A | |
| Stackable | No | |
| Colour | yellow/green | |
| contact surface | nickel-plated | |
| Connection | flat plug connection | |
| Touch safe | Yes | |
| Rated category | CAT III | |
| Length | 33 mm | |
| Installation diameter | 12.2 mm | |
| Rated Voltage | 1000 V | |
| Version | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bag with 20 pieces |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
