41.0061 | Stäubli Electrical Connectors

3.5 mm socket, solder connection, 2 mm, 41.0061

Order No.: 25F312
EAN: 4099889672619
MPN:
41.0061
B2
Series: Miniline
41.0061 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
5.8072 € *
Available: 454 pcs.
Next delivery: 4,250 pcs. on 2025-09-24
Total Price:
5.81 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8072 €
10 pcs.
5.4740 €
100 pcs.
5.1527 €
500 pcs.
4.8314 €
1000 pcs.
4.5101 €
*incl. VAT plus shipping costs
Subject to prior sale

Solder receptacles, 2.0 mm, type MC B2.

For 2.0 mm plug pins and PCB mounting. Made of lathed gold-plated brass; Contact spring: hard-copper alloy, gold-plated. Suitable for dip soldering. Rated current: max. 25 A.

Type: B2, solder receptacle

Technical specifications
Filter Property Value
Rated current 25 A
Version socket
Connection solder connection

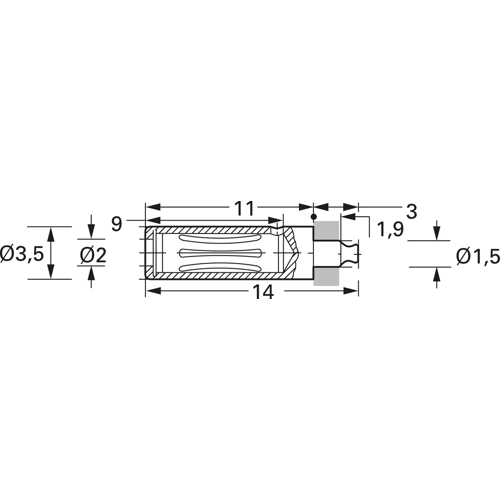

diameter 3.5 mm
Touch safe No
contact surface gold-plated
Length 14 mm
Logistics
Property Value
Customs tariff number 85366990
Country of origin CH
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
