41.0055 | Stäubli Electrical Connectors
2 mm socket, solder connection, 0.8 mm, 41.0055
Unit Price (€ / pc.)
5.4621 € *
Available: 8,049 pcs.
Next delivery: 1,192 pcs. on 2026-02-11
Total Price:
5.46 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4621 €
10 pcs.
5.0456 €
100 pcs.
4.6529 €
500 pcs.
4.3792 €
1000 pcs.
4.1055 €
*incl. VAT plus shipping costs
Subject to prior sale
Solder receptacles, 0.8 mm, type MC B0,8.
Made of lathed gold-plated brass. Lamellar contacts made of gold-plated hard-copper alloy. Suitable for dip soldering; Rated current: max. 18 A.
Type: B0.8, receptacle

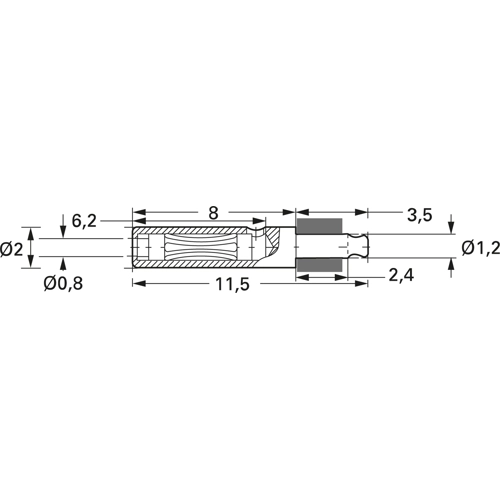

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| diameter | 2 mm | |
| Connection | solder connection | |
| contact surface | gold-plated | |
| Rated current | 18 A | |
| Touch safe | No | |
| Length | 11.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
