41.0010 | Stäubli Electrical Connectors

2 mm socket, solder connection, 1 mm, 41.0010

Order No.: 25F2993
EAN: 4099889672534
MPN:
41.0010
LB1
Series: Miniline
41.0010 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
10.9718 € *
Available: 1,494 pcs.
Total Price:
10.97 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9718 €
10 pcs.
10.3292 €
100 pcs.
9.6866 €
500 pcs.
9.0321 €
1000 pcs.
8.3895 €
*incl. VAT plus shipping costs
Subject to prior sale

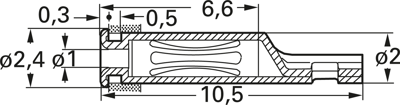

Solder receptacles, 1.0 mm, type MC LB1.

For PCB mounting. Suitable for dip soldering. Made of brass with galvanic gold-plating; Rated current: max. 20 A.

Type: LB1, receptacle

Technical specifications
Filter Property Value
Rated current 20 A
Version socket
Connection solder connection
diameter 2 mm
Touch safe No
contact surface gold-plated
Length 10.5 mm
Logistics
Property Value
Customs tariff number 85389099
Country of origin CH
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
