41.0001 | Stäubli Electrical Connectors
2 mm socket, solder connection, 1 mm, 41.0001
Unit Price (€ / pc.)
3.7009 € *
Available: 13,353 pcs.
Total Price:
3.70 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7009 €
10 pcs.
3.4867 €
100 pcs.
3.2725 €
500 pcs.
3.0464 €
1000 pcs.
2.8322 €
*incl. VAT plus shipping costs
Subject to prior sale

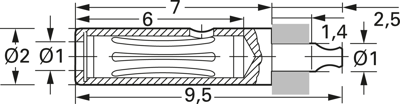

Solder receptacles, 1.0 mm, type MC B1-A.
For 1.0 mm plug pins and PCB mounting. Made of lathed gold-plated brass; Contact lamellae: gold-plated hard-copper alloy, suitable for dip soldering. Rated current: max. 20 A.
Type: B1–A, solder receptacle
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Rated current | 20 A | |
| diameter | 2 mm | |
| contact surface | gold-plated | |
| Version | socket | |
| Touch safe | No | |
| Length | 9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
