23.3160-24 | Stäubli Electrical Connectors

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, CAT IV, yellow, 23.3160-24

Order No.: 22F252
EAN: 842640104362
MPN:
23.3160-24
SEB4-F/A GELB

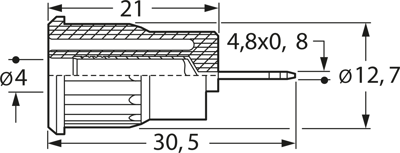

23.3160-24 Stäubli Electrical Connectors Laboratory Connectors Image 1

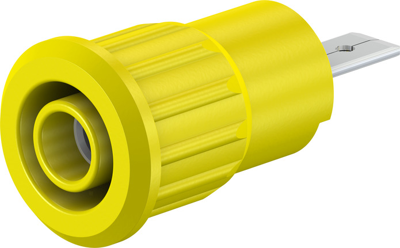

23.3160-24 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.3447 € *
Available: 41 pcs.
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3447 €
20 pcs.
1.2257 €
100 pcs.
1.1305 €
500 pcs.
1.0115 €
1000 pcs.
0.9282 €
*incl. VAT plus shipping costs
Subject to prior sale

4 mm Socket, 23.3160-24, Stäubli Electrical Connectors

Insulated, Ø 4 mm rigid socket accepting, spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Brass sheet. The socket is pressed into predrilled panels of plastic, metal etc. Flat connecting tab 4.8 mm x 0.8 mm, can be bent to 90°, once only.

Technical specifications
Colour yellow
Installation diameter 12.2 mm
contact surface nickel-plated
diameter 4 mm
Length 30.5 mm
Stackable No
Touch safe Yes
Version press-in socket
Connection flat plug connection
Rated Voltage 1000 V/600 V
Rated current 24 A
Rated category CAT III, CAT IV
Logistics
Country of origin CH
Customs tariff number 85369010
Original Packaging Bag with 20 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
