23.3140-25 | Stäubli Electrical Connectors

4 mm socket, threaded bolt, mounting Ø 12.2 mm, CAT III, green, 23.3140-25

Order No.: 25F2011
EAN: 842640104218
MPN:
23.3140-25
SEB4-G GRÜN
23.3140-25 Stäubli Electrical Connectors Laboratory Connectors

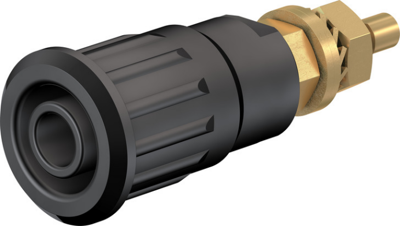

Image may differ
Unit Price (€ / pc.)
2.9750 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.98 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9750 €
20 pcs.
2.6180 €
100 pcs.
2.4514 €
500 pcs.
2.3443 €
1000 pcs.
2.2253 €
*incl. VAT plus shipping costs
Subject to prior sale

4 mm Socket, 23.3140-25, Stäubli Electrical Connectors

Insulated, Ø 4 mm rigid sockets accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Connection: Threaded bolt M4 and soldering hole.

Technical specifications
Colour green
Installation diameter 12.2 mm
contact surface gold-plated
diameter 4 mm
Length 38.5 mm
Stackable No
Touch safe Yes
Version press-in socket
Connection threaded bolt
Rated Voltage 1000 V
Rated current 32 A
Rated category CAT III
Logistics
Country of origin CH
Customs tariff number 85369010
Original Packaging Bag with 20 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
