23.3130-23 | Stäubli Electrical Connectors
4 mm socket, round plug connection, mounting Ø 12.2 mm, CAT III, blue, 23.3130-23
Unit Price (€ / pc.)
1.4042 € *
Available: 18 pcs.
Total Price:
1.40 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4042 €
20 pcs.
1.2733 €
100 pcs.
1.1662 €
500 pcs.
1.0472 €
1000 pcs.
0.9877 €
*incl. VAT plus shipping costs
Subject to prior sale

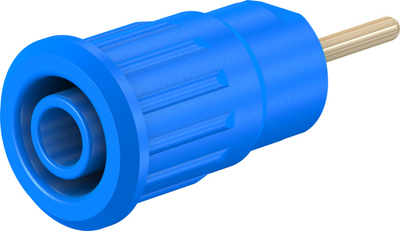

4 mm Socket, 23.3130-23, Stäubli Electrical Connectors
Insulated, Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Round connecting pin Ø 1.9 mm.

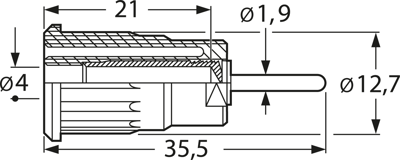

Technical specifications
| Rated category | CAT III | |
| Touch safe | Yes | |
| Stackable | No | |
| Installation diameter | 12.2 mm | |
| contact surface | gold-plated | |
| Connection | round plug connection | |
| Colour | blue | |
| Rated current | 24 A | |
| Rated Voltage | 1000 V | |
| Length | 35.5 mm | |
| diameter | 4 mm | |
| Version | press-in socket |
Download
Logistics
| Customs tariff number | 85366990 |
| Original Packaging | Bag with 20 pieces |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
