23.3130-22 | Stäubli Electrical Connectors

4 mm socket, round plug connection, mounting Ø 12.2 mm, CAT III, red, 23.3130-22

Order No.: 25F2704
EAN: 842640104102
MPN:
23.3130-22
SEB4-R ROT

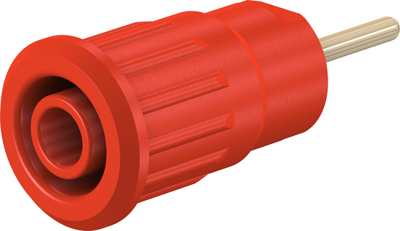

23.3130-22 Stäubli Electrical Connectors Laboratory Connectors Image 1

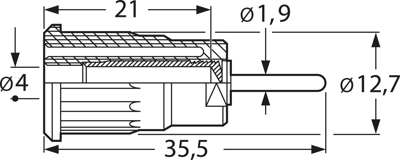

23.3130-22 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.3328 € *
Available: 67 pcs.
Leadtime: 3 Weeks **
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3328 €
20 pcs.
1.2138 €
100 pcs.
1.1067 €
500 pcs.
0.9996 €
1000 pcs.
0.9401 €
*incl. VAT plus shipping costs
**Subject to prior sale

4 mm Socket, 23.3130-22, Stäubli Electrical Connectors

Insulated, Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Round connecting pin Ø 1.9 mm.

Technical specifications
Colour red
Installation diameter 12.2 mm
contact surface gold-plated
diameter 4 mm
Length 35.5 mm
Stackable No
Touch safe Yes
Version press-in socket
Connection round plug connection
Rated Voltage 1000 V
Rated current 24 A
Rated category CAT III
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 20 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
