23.3120-24 | Stäubli Electrical Connectors

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, yellow, 23.3120-24

Order No.: 25F2716
EAN: 842640104041
MPN:
23.3120-24
SEB4-F GELB

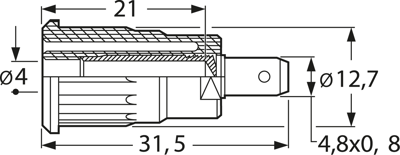

23.3120-24 Stäubli Electrical Connectors Laboratory Connectors Image 1

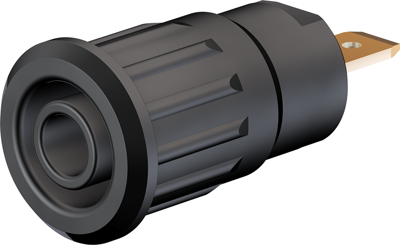

23.3120-24 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.8326 € *
Available: 10 pcs.
Total Price:
1.83 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8326 €
20 pcs.
1.5470 €
100 pcs.
1.4161 €
500 pcs.
1.3447 €
1000 pcs.
1.2257 €
*incl. VAT plus shipping costs
Subject to prior sale

4 mm Socket, 23.3120-24, Stäubli Electrical Connectors

Insulated, Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Flat connecting tab 4.8 mm x 0.8 mm.

Technical specifications
Filter Property Value
diameter 4 mm
Length 31.5 mm
contact surface gold-plated
Colour yellow
Stackable No
Rated category CAT III
Installation diameter 12.2 mm
Rated current 24 A
Connection flat plug connection
Touch safe Yes
Version press-in socket
Rated Voltage 1000 V
Logistics
Property Value
Customs tariff number 85369010
Original Packaging Bag with 20 pieces
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
