23.3110-22 | Stäubli Electrical Connectors

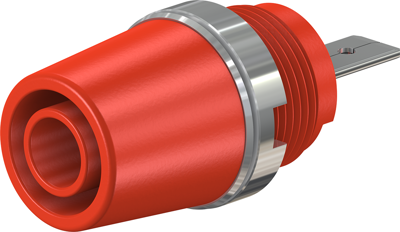

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT II, red, 23.3110-22
Unit Price (€ / pc.)
3.1416 € *
Available: 316 pcs.
Next delivery: 180 pcs. on 2025-11-13
Total Price:
3.14 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1416 €
20 pcs.
2.6656 €
100 pcs.
2.4157 €
500 pcs.
2.2848 €
1000 pcs.
2.0825 €
*incl. VAT plus shipping costs
Subject to prior sale
4 mm Socket, 23.3110-22, Stäubli Electrical Connectors

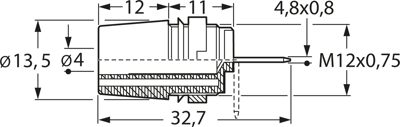

Insulated, Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Brass sheet. The socket is surface-mounted in predrilled panels of plastic, metal etc. Flat connecting tab 4.8 mm x 0.8 mm, can be bent to 90°, once only.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| Installation diameter | 12.2 mm | |
| contact surface | nickel-plated | |
| Rated Voltage | 1000 V | |
| Touch safe | Yes | |
| Connection | flat plug connection | |
| Length | 32.7 mm | |
| Rated category | CAT II | |
| Stackable | No | |
| Rated current | 20 A | |
| Colour | red | |
| Version | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Original Packaging | Bag with 20 pieces |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
