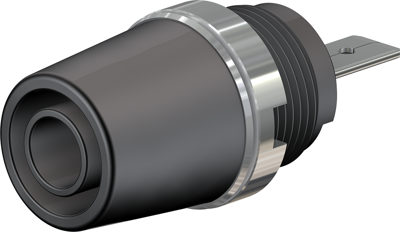

4 mm Socket, 23.3110-21, Stäubli Electrical Connectors

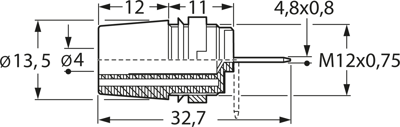

Insulated Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Brass sheet. The socket is surface-mounted in predrilled panels of plastic, metal etc. Flat connecting tab 4.8 mm x 0.8 mm, can be bent to 90°, once only.
Technical specifications
| Rated category | CAT II | |
| Touch safe | Yes | |
| Stackable | No | |
| Installation diameter | 12.2 mm | |
| contact surface | nickel-plated | |
| Connection | flat plug connection | |
| Colour | black | |
| Rated current | 20 A | |
| Rated Voltage | 1000 V | |
| Length | 32.7 mm | |
| diameter | 4 mm | |
| Version | socket |
Download
Logistics
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
