23.3060-25 | Stäubli Electrical Connectors

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, green, 23.3060-25

Order No.: 22F290
EAN: 842640103815
MPN:
23.3060-25
SLB4-F6,3 GRÜN

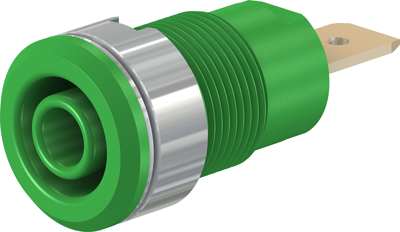

23.3060-25 Stäubli Electrical Connectors Laboratory Connectors Image 1

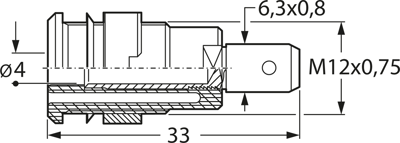

23.3060-25 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.7846 € *
Available: 42 pcs.
Next delivery: 100 pcs. on 2025-09-01
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
20 pcs.
2.3919 €
100 pcs.
2.1658 €
500 pcs.
2.0349 €
1000 pcs.
1.8564 €
*incl. VAT plus shipping costs
Subject to prior sale

4 mm Socket, 23.3060-25, Stäubli Electrical Connectors

Insulated, Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into predrilled panels of plastic, metal etc. Flat connecting tab 6.3 mm x 0.8 mm.

Technical specifications
Rated category CAT III
Touch safe Yes
Stackable No
Installation diameter 12.2 mm
contact surface gold-plated
Connection flat plug connection
Colour green
Rated current 32 A
Rated Voltage 1000 V
Length 33 mm
diameter 4 mm
Version socket
Logistics
Customs tariff number 85369010
Original Packaging Bag with 20 pieces
Country of origin DE
Compliance
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
