23.3060-20 | Stäubli Electrical Connectors

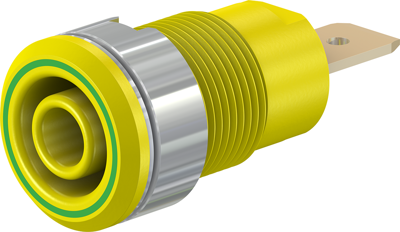

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, yellow/green, 23.3060-20
Unit Price (€ / pc.)
2.7846 € *
Available: 7 pcs.
Next delivery: 260 pcs. on 2025-06-27
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
20 pcs.
2.3919 €
100 pcs.
2.1658 €
500 pcs.
2.0349 €
1000 pcs.
1.8564 €
*incl. VAT plus shipping costs
Subject to prior sale
4 mm Socket, 23.3060-20, Stäubli Electrical Connectors

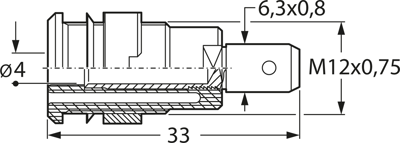

Insulated Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into predrilled panels of plastic, metal etc. Flat connecting tab 6.3 mm x 0.8 mm.
Technical specifications
| contact surface | gold-plated | |
| Stackable | No | |
| Connection | flat plug connection | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Colour | yellow/green | |
| Installation diameter | 12.2 mm | |
| Version | socket | |
| Length | 33 mm | |
| Rated category | CAT III | |
| Touch safe | Yes | |
| diameter | 4 mm |
Download
Logistics
| Original Packaging | Bag with 20 pieces |
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
