23.3020-23 | Stäubli Electrical Connectors

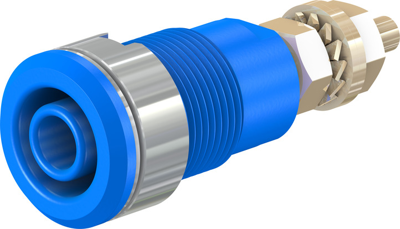

4 mm socket, screw connection, mounting Ø 12.2 mm, CAT III, blue, 23.3020-23
Unit Price (€ / pc.)
3.2963 € *
Next delivery: 593 pcs. on 2025-06-06
Total Price:
3.30 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2963 €
20 pcs.
2.9036 €
100 pcs.
2.6894 €
500 pcs.
2.5942 €
1000 pcs.
2.4514 €
*incl. VAT plus shipping costs
Subject to prior sale
4 mm Socket, 23.3020-23, Stäubli Electrical Connectors
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into pre-drilled panels of plastic, metal, etc. Connection: Threaded bolt M4 and soldering hole.
Technical specifications
| Version | socket | |
| diameter | 4 mm | |
| Rated Voltage | 1000 V | |
| Touch safe | Yes | |
| Installation diameter | 12.2 mm | |
| Connection | screw connection | |
| Rated current | 32 A | |
| Length | 38.5 mm | |
| Stackable | No | |
| Colour | blue | |
| contact surface | gold-plated | |
| Rated category | CAT III |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
| Original Packaging | Bag with 20 pieces |
Compliance
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
