23.3020-21 | Stäubli Electrical Connectors

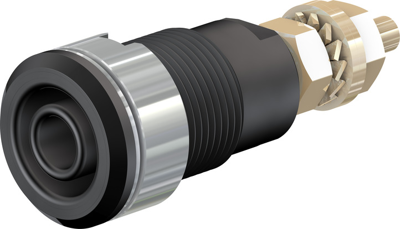

4 mm socket, screw connection, mounting Ø 12.2 mm, CAT III, black, 23.3020-21

Order No.: 22F230
EAN: 842640103570
MPN:
23.3020-21
SLB4-G SCHWARZ
23.3020-21 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
3.2963 € *
Next delivery: 1,299 pcs. on 2025-06-06
Total Price:
3.30 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2963 €
20 pcs.
2.9036 €
100 pcs.
2.6894 €
500 pcs.
2.5942 €
1000 pcs.
2.4514 €
*incl. VAT plus shipping costs
Subject to prior sale

4 mm Socket, 23.3020-21, Stäubli Electrical Connectors

Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into pre-drilled panels of plastic, metal, etc. Connection: Threaded bolt M4 and soldering hole.

Technical specifications
Rated Voltage 1000 V
Colour black
Rated current 32 A
Length 38.5 mm
contact surface gold-plated
Stackable No
Installation diameter 12.2 mm
Touch safe Yes
Connection screw connection
diameter 4 mm
Rated category CAT III
Version socket
Logistics
Customs tariff number 85369010
Original Packaging Bag with 20 pieces
Country of origin DE
Compliance
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
