23.3000-24 | Stäubli Electrical Connectors
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, yellow, 23.3000-24
Unit Price (€ / pc.)
2.5347 € *
Available: 544 pcs.
Next delivery: 580 pcs. on 2025-07-10
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
20 pcs.
2.1658 €
100 pcs.
1.9516 €
500 pcs.
1.8326 €
1000 pcs.
1.6898 €
*incl. VAT plus shipping costs
Subject to prior sale

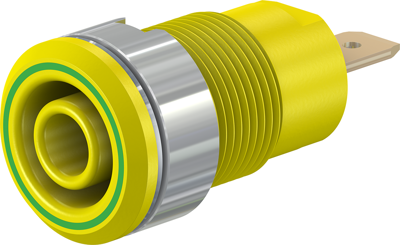

4 mm Socket, 23.3000-24, Stäubli Electrical Connectors

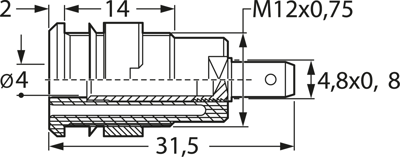

Insulated, Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into predrilled panels of plastic, metal etc. Flat connecting tab 4.8 mm x 0.8 mm.
Technical specifications
| Colour | yellow | |
| Installation diameter | 12.2 mm | |
| contact surface | gold-plated | |
| diameter | 4 mm | |
| Length | 31.5 mm | |
| Stackable | No | |
| Touch safe | Yes | |
| Version | socket | |
| Connection | flat plug connection | |
| Rated Voltage | 1000 V | |
| Rated current | 24 A | |
| Rated category | CAT III |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
