23.3000-21 | Stäubli Electrical Connectors

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, black, 23.3000-21

Order No.: 22F266
EAN: 851722006548
MPN:
23.3000-21
SLB4-F SCHWARZ

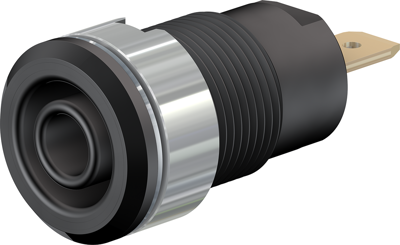

23.3000-21 Stäubli Electrical Connectors Laboratory Connectors Image 1

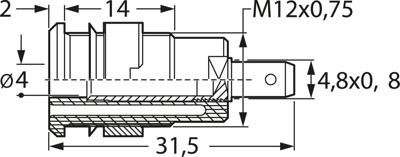

23.3000-21 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.5347 € *
Available: 3,431 pcs.
Next delivery: 3,320 pcs. on 2025-11-13
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
20 pcs.
2.1658 €
100 pcs.
1.9516 €
500 pcs.
1.8326 €
1000 pcs.
1.6898 €
*incl. VAT plus shipping costs
Subject to prior sale

4 mm Socket, 23.3000-21, Stäubli Electrical Connectors

Insulated, Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into predrilled panels of plastic, metal etc. Flat connecting tab 4.8 mm x 0.8 mm.

Technical specifications
Filter Property Value
Installation diameter 12.2 mm
Rated Voltage 1000 V
Connection flat plug connection
Stackable No
Version socket
contact surface gold-plated
Rated category CAT III
diameter 4 mm
Touch safe Yes
Colour black
Rated current 24 A
Length 31.5 mm
Logistics
Property Value
Country of origin DE
Original Packaging Bag with 20 pieces
Customs tariff number 85369010
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
