23.1035-21 | Stäubli Electrical Connectors
4 mm screw-on adapter, screw connection, CAT II, black, 23.1035-21
Unit Price (€ / pc.)
1.4280 € *
Available: 26 pcs.
Total Price:
1.43 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4280 €
25 pcs.
1.2138 €
100 pcs.
1.1424 €
500 pcs.
1.0710 €
1000 pcs.
0.9758 €
*incl. VAT plus shipping costs
Subject to prior sale

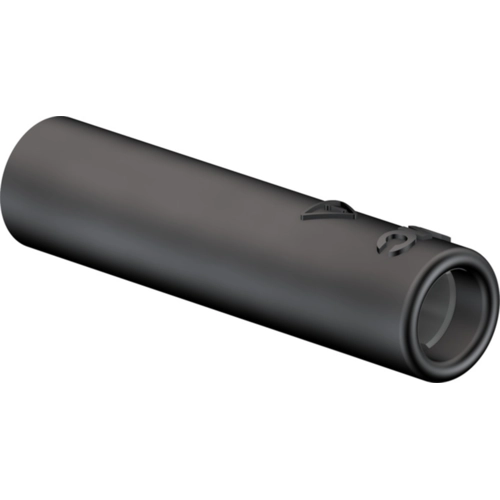

4 mm Screw-in adapter, 23.1035-21, Stäubli Electrical Connectors
Insulated, with M4 internal thread for screw connection to threaded bolts. Machined brass. Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Socket with slotted head for screwdriver.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | screw-on adapter | |
| contact surface | nickel-plated | |
| Rated Voltage | 600 V | |
| Rated current | 32 A | |
| Touch safe | No | |
| Stackable | No | |
| diameter | 4 mm | |
| Rated category | CAT II | |
| Length | 25 mm | |
| Connection | screw connection | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 25 pieces |
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
