23.1034-24 | Stäubli Electrical Connectors

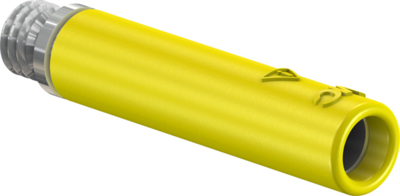

4 mm screw-in adapter, screw connection, yellow, 23.1034-24

Order No.: 86F8127
EAN: 842640103327
MPN:
23.1034-24
B4-E-M5-I GELB
23.1034-24 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.2019 € *
Available: 23 pcs.
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
25 pcs.
1.1067 €
100 pcs.
1.0115 €
500 pcs.
0.8806 €
1000 pcs.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale

Screw-in adapter, 23.1034-21, Stäubli Electrical Connectors

Insulated, screw-in adapter with M5 external thread for screw connection to threaded holes. Machined brass. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Socket with internal slot for screwdriver.

Technical specifications
Colour yellow
contact surface nickel-plated
diameter 4 mm
Length 30.5 mm
Stackable No
Touch safe No
Version screw-in adapter
Connection screw connection
Rated Voltage 30 VAC/60 VDC
Rated current 32 A
Logistics
Customs tariff number 85369010
Original Packaging Bag with 25 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
