Screw-in adapter, 23.1034-21, Stäubli Electrical Connectors

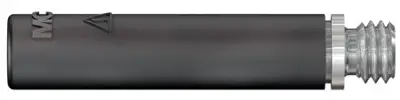

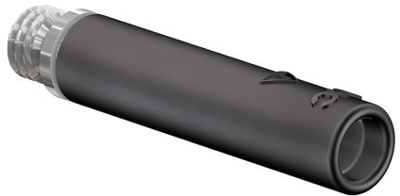

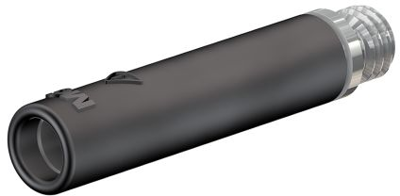

Insulated, screw-in adapter with M5 external thread for screw connection to threaded holes. Machined brass. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Socket with internal slot for screwdriver.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Rated current | 32 A | |
| Connection | screw connection | |
| diameter | 4 mm | |
| Length | 30.5 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| contact surface | nickel-plated | |
| Stackable | No | |
| Touch safe | No | |
| Version | screw-in adapter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
| Original Packaging | Bag with 25 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
