23.1033-24 | Stäubli Electrical Connectors
4 mm screw-in adapter, screw connection, CAT II, yellow, 23.1033-24
Unit Price (€ / pc.)
1.2733 € *
Available: 32 pcs.
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2733 €
25 pcs.
1.1781 €
100 pcs.
1.0591 €
500 pcs.
0.9401 €
1000 pcs.
0.8925 €
*incl. VAT plus shipping costs
Subject to prior sale

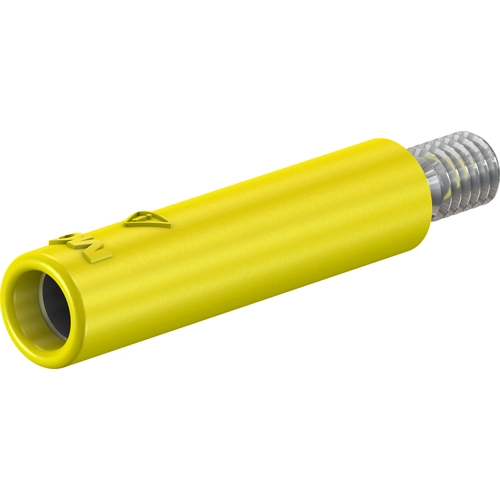

4 mm Screw-in adapter, 23.1033-24, Stäubli Electrical Connectors
Insulated, screw-in adapter with external thread for screw connection to threaded holes. Machined brass. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Socket with internal slot for screwdriver.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Colour | yellow | |
| Rated current | 32 A | |
| Touch safe | No | |
| Length | 31.5 mm | |
| Stackable | No | |
| Rated category | CAT II | |
| diameter | 4 mm | |
| contact surface | nickel-plated | |
| Rated Voltage | 600 V | |
| Version | screw-in adapter |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
| Original Packaging | Bag with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
