23.1012-21 | Stäubli Electrical Connectors
2 mm socket, round plug connection, mounting Ø 4.9 mm, black, 23.1012-21
Unit Price (€ / pc.)
1.2257 € *
Available: 70 pcs.
Total Price:
1.23 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2257 €
25 pcs.
1.1305 €
100 pcs.
1.0234 €
500 pcs.
0.9044 €
1000 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale

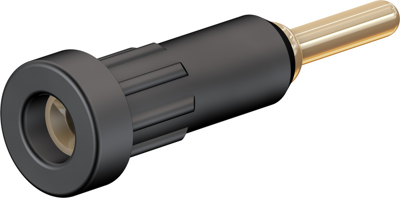

2 mm Socket, 23.1012-21, Stäubli Electrical Connectors
Insulated Ø 2 mm rigid made of machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Connection: Round connecting pin Ø 1.9 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2 mm | |
| Installation diameter | 4.9 mm | |
| contact surface | gold-plated | |
| Rated Voltage | 30 VAC/60 VDC | |
| Touch safe | No | |
| Connection | round plug connection | |
| Length | 24.5 mm | |
| Stackable | No | |
| Rated current | 10 A | |
| Colour | black | |
| Version | press-in socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bag with 25 pieces |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
