23.1011-26 | Stäubli Electrical Connectors

2 mm socket, flat plug connection, mounting Ø 4.9 mm, purple, 23.1011-26

Order No.: 86F8146
EAN: 842640102672
MPN:
23.1011-26
EB2 VIOLETT

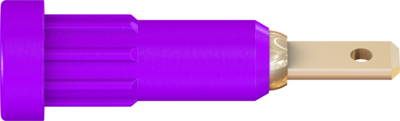

23.1011-26 Stäubli Electrical Connectors Laboratory Connectors Image 1

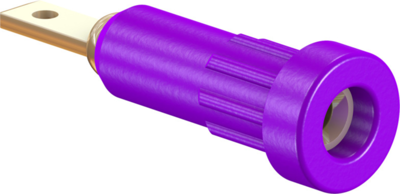

23.1011-26 Stäubli Electrical Connectors Laboratory Connectors Image 2

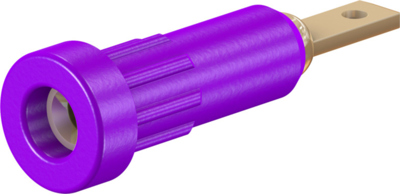

23.1011-26 Stäubli Electrical Connectors Laboratory Connectors Image 3
Image may differ
Unit Price (€ / pc.)
1.2852 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.29 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2852 €
25 pcs.
1.1900 €
100 pcs.
1.0710 €
500 pcs.
0.9758 €
1000 pcs.
0.8925 €
*incl. VAT plus shipping costs
Subject to prior sale

2 mm Socket, 23.1011-26, Stäubli Electrical Connectors

Insulated, Ø 2 mm rigid socket made of machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Connection: Flat connecting tab 2.8 mm x 0.8 mm.

Technical specifications
Filter Property Value
Length 23 mm
contact surface gold-plated
Rated Voltage 30 VAC/60 VDC
Installation diameter 4.9 mm
Rated current 10 A
Stackable No
Connection flat plug connection
diameter 2 mm
Version press-in socket
Colour purple
Touch safe No
Logistics
Property Value
Country of origin DE
Original Packaging Bag with 25 pieces
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
