23.1010-24 | Stäubli Electrical Connectors

1 mm socket, solder connection, mounting Ø 2.7 mm, yellow, 23.1010-24

Order No.: 25F2998
EAN: 4099889672589
MPN:
23.1010-24
EB1 GELB
23.1010-24 Stäubli Electrical Connectors Laboratory Connectors Image 1
23.1010-24 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.0940 € *
Available: 98 pcs.
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0940 €
25 pcs.
2.7251 €
100 pcs.
2.5823 €
500 pcs.
2.4990 €
1000 pcs.
2.3443 €
*incl. VAT plus shipping costs
Subject to prior sale

1 mm Socket, 23.1010-24, Stäubli Electrical Connectors

Insulated, Ø 1 mm, spring-loaded with MULTILAM. Brass. The socket is pressed into predrilled panels.

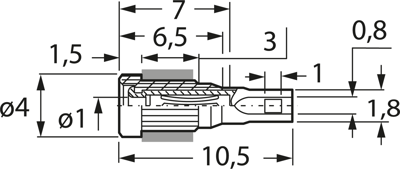

Technical specifications
Filter Property Value
Version press-in socket
Colour yellow
Rated current 20 A
diameter 1 mm
Stackable No
Touch safe No
Rated Voltage 30 VAC/60 VDC
Connection solder connection
Installation diameter 2.7 mm
contact surface gold-plated
Length 10.5 mm
Logistics
Property Value
Original Packaging Bag with 25 pieces
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
