23.1010-22 | Stäubli Electrical Connectors

1 mm socket, solder connection, mounting Ø 2.7 mm, red, 23.1010-22

Order No.: 25F2995
EAN: 842640102535
MPN:
23.1010-22
EB1 ROT

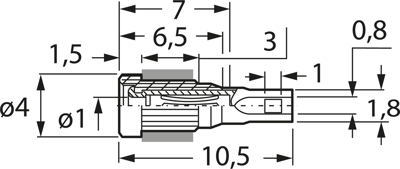

23.1010-22 Stäubli Electrical Connectors Laboratory Connectors Image 1

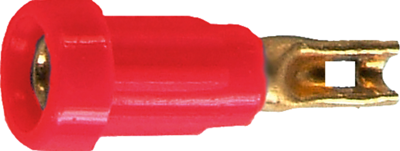

23.1010-22 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.9512 € *
Available: 182 pcs.
Next delivery: 200 pcs. on 2025-06-23
Total Price:
2.95 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9512 €
25 pcs.
2.5942 €
100 pcs.
2.4633 €
500 pcs.
2.3800 €
1000 pcs.
2.2372 €
*incl. VAT plus shipping costs
Subject to prior sale

1 mm Socket, 23.1010-22, Stäubli Electrical Connectors

Insulated, Ø 1 mm, spring-loaded with MULTILAM. Brass. The socket is pressed into predrilled panels.

Technical specifications
Colour red
Installation diameter 2.7 mm
contact surface gold-plated
diameter 1 mm
Length 10.5 mm
Stackable No
Touch safe No
Version press-in socket
Connection solder connection
Rated Voltage 30 VAC/60 VDC
Rated current 20 A
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 25 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
