23.1010-20 | Stäubli Electrical Connectors

1 mm socket, solder connection, mounting Ø 2.7 mm, yellow/green, 23.1010-20

Order No.: 86F8140
EAN: 4099889676488
MPN:
23.1010-20
EB1 GRÜN/GELB

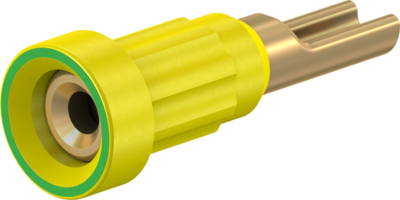

23.1010-20 Stäubli Electrical Connectors Laboratory Connectors Image 1

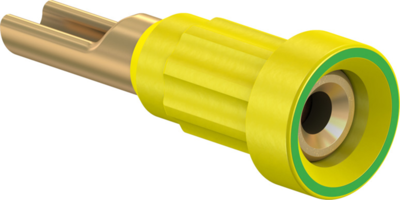

23.1010-20 Stäubli Electrical Connectors Laboratory Connectors Image 2

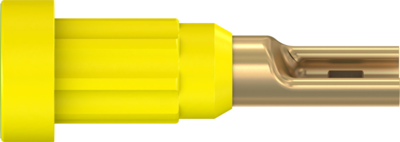

23.1010-20 Stäubli Electrical Connectors Laboratory Connectors Image 3
Image may differ
Unit Price (€ / pc.)
3.0940 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0940 €
25 pcs.
2.7251 €
100 pcs.
2.5823 €
500 pcs.
2.4990 €
1000 pcs.
2.3443 €
*incl. VAT plus shipping costs
Subject to prior sale

1 mm Socket, 23.1010-20, Stäubli Electrical Connectors

Insulated, Ø 1 mm, spring-loaded with MULTILAM. Brass. The socket is pressed into predrilled panels.

Technical specifications
Filter Property Value
Connection solder connection
Colour yellow/green
Rated current 20 A
Touch safe No
Length 10.5 mm
Stackable No
diameter 1 mm
contact surface gold-plated
Rated Voltage 30 VAC/60 VDC
Version press-in socket
Installation diameter 2.7 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 25 pieces
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
