23.1003 | Stäubli Electrical Connectors

4 mm socket, solder connection, mounting Ø 4.8 mm, 23.1003

Order No.: 22F100
EAN: 4099889668384
MPN:
23.1003
LB4

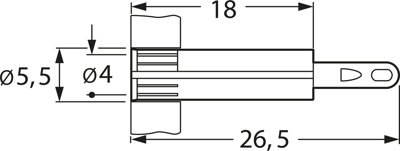

23.1003 Stäubli Electrical Connectors Laboratory Connectors Image 1

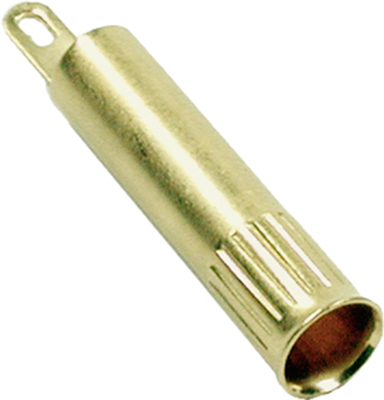

23.1003 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
0.7259 € *
Next delivery: 95 pcs. on 2025-07-30
Total Price:
0.73 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7259 €
10 pcs.
0.6545 €
100 pcs.
0.5593 €
500 pcs.
0.5236 €
1000 pcs.
0.4879 €
*incl. VAT plus shipping costs
Subject to prior sale

4 mm Socket, 23.1003, Stäubli Electrical Connectors

Uninsulated Ø 4 mm rigid socket, made of rolled brass sheet. The socket is pressed into predrilled plastic panels or soldered into printed circuit boards.

Technical specifications
Filter Property Value
diameter 4 mm
Rated current 25 A
Stackable No
contact surface gold-plated
Connection solder connection
Touch safe No
Length 26.5 mm
Installation diameter 4.8 mm
Rated Voltage 30 VAC/60 VDC
Version socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
