23.1001 | Stäubli Electrical Connectors
2 mm socket, solder connection, mounting Ø 2 mm, 23.1001
Unit Price (€ / pc.)
0.3927 € *
Available: 1,644 pcs.
Next delivery: 700 pcs. on 2025-11-13
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3927 €
10 pcs.
0.3332 €
100 pcs.
0.2796 €
500 pcs.
0.2404 €
1000 pcs.
0.2142 €
*incl. VAT plus shipping costs
Subject to prior sale
2 mm Socket, 23.1001, Stäubli Electrical Connectors

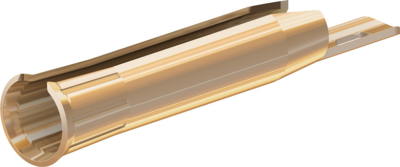

Uninsulated Ø 2 mm rigid socket, made of rolled brass sheet. Mounting by pressing or soldering into holes drilled in printed circuit boards or housings.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| contact surface | gold-plated | |
| Installation diameter | 2 mm | |
| Length | 6 mm | |
| Touch safe | No | |
| diameter | 2 mm | |
| Stackable | No | |
| Connection | solder connection | |
| Rated current | 10 A | |
| Rated Voltage | 30 VAC/60 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
