23.1000 | Stäubli Electrical Connectors
2 mm socket, solder connection, 2 mm, 23.1000
Unit Price (€ / pc.)
0.2892 € *
Available: 3,464 pcs.
Total Price:
0.29 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2892 €
10 pcs.
0.2463 €
100 pcs.
0.2225 €
500 pcs.
0.2059 €
1000 pcs.
0.1892 €
*incl. VAT plus shipping costs
Subject to prior sale
2 mm Socket, 23.1000, Stäubli Electrical Connectors

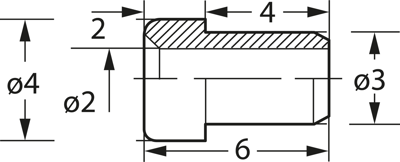

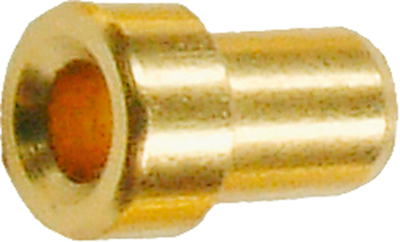

Uninsulated Ø 2 mm rigid socket. Machined brass. The socket is soldered into predrilled panels.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 10 A | |
| Version | socket | |
| Connection | solder connection | |
| diameter | 2 mm | |
| Touch safe | No | |
| contact surface | gold-plated | |
| Length | 6 mm | |
| Stackable | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
