23.0190-20 | Stäubli Electrical Connectors
4 mm socket, flat plug connection, mounting Ø 8.3 mm, yellow/green, 23.0190-20
Order No.: 25F449
EAN: 4099889673357
MPN:
23.0190-20
LB-I4R-A GRÜN/GELB
This item is no longer available.
As an alternative, we recommend the following item:
4 mm socket, plug-in connection, mounting Ø 8.1 mm, yellow/green, 64.3040-20
Order No.: 22F7210
Manufacturer: Stäubli Electrical Connectors
per pc. 1.7017 € *

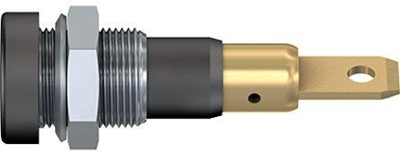

4 mm Socket, 23.0190-20, Stäubli Electrical Connectors

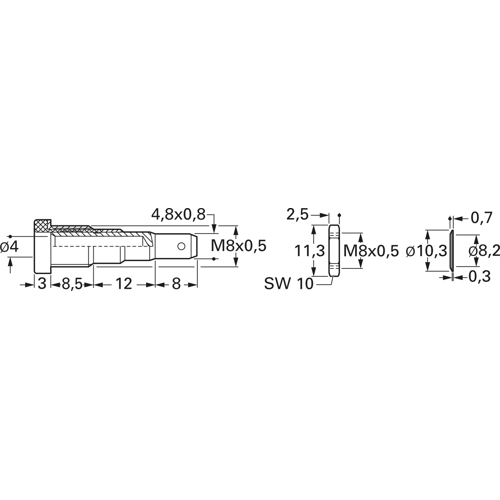

Insulated, Ø 4 mm, rigid. Machined brass. Metal thread jacket on the insulation. The socket can be screw-mounted in predrilled panels. Flat connecting tab 4.8 mm x 0.8 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | flat plug connection | |
| Colour | yellow/green | |
| Rated current | 25 A | |
| Touch safe | No | |
| Length | 31 mm | |
| Stackable | No | |
| diameter | 4 mm | |
| contact surface | gold-plated | |
| Rated Voltage | 30 VAC/60 VDC | |
| Version | socket | |
| Installation diameter | 8.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
