23.0060-22 | Stäubli Electrical Connectors

2 mm socket, flat plug connection, mounting Ø 6.4 mm, red, 23.0060-22

Order No.: 22F312
EAN: 842640102085
MPN:
23.0060-22
LB-IF2R ROT

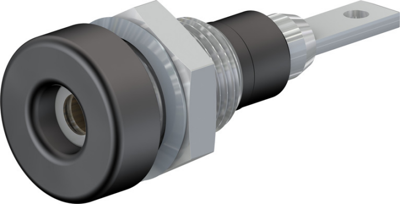

23.0060-22 Stäubli Electrical Connectors Laboratory Connectors Image 1
23.0060-22 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.6291 € *
Available: 404 pcs.
Next delivery: 500 pcs. on 2025-07-03
Total Price:
4.63 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6291 €
50 pcs.
4.0579 €
100 pcs.
3.5700 €
500 pcs.
3.4272 €
1000 pcs.
3.1535 €
*incl. VAT plus shipping costs
Subject to prior sale

2 mm Socket, 23.0060-22, Stäubli Electrical Connectors

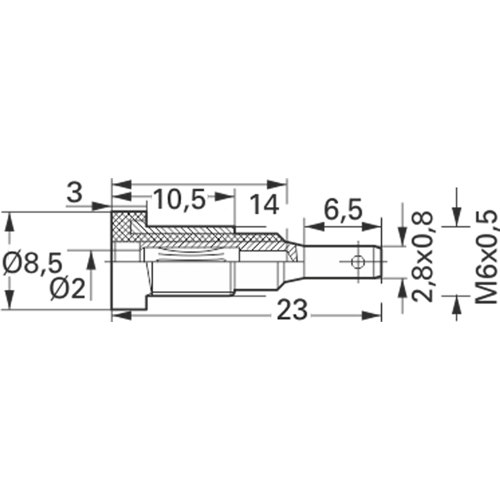

Insulated, Ø 2 mm socket with spring-loaded Multilam. Machined brass. Metal thread jacket on the insulation. The socket can be screw-mounted in predrilled panels. Flat connecting tab 2.8 mm x 0.8 mm.

Technical specifications
Filter Property Value
Stackable No
Rated Voltage 30 VAC/60 VDC
Connection flat plug connection
Rated current 10 A
Version socket
Touch safe No
Length 23 mm
Colour red
diameter 2 mm
Installation diameter 6.4 mm
Logistics
Property Value
Customs tariff number 85369010
Original Packaging Bag with 50 pieces
Country of origin DE
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
