23.0040-24 | Stäubli Electrical Connectors

2 mm socket, flat plug connection, mounting Ø 6.4 mm, yellow, 23.0040-24

Order No.: 25F346
EAN: 4099889672862
MPN:
23.0040-24
LB-I2R GELB

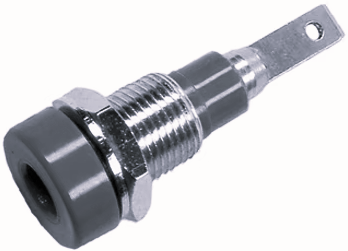

23.0040-24 Stäubli Electrical Connectors Laboratory Connectors Image 1
23.0040-24 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.5581 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.56 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5581 €
10 pcs.
3.1297 €
50 pcs.
2.7370 €
100 pcs.
2.6418 €
500 pcs.
2.4276 €
*incl. VAT plus shipping costs
Subject to prior sale

Panel sockets, 2.0 mm, type MC LB-I2-R.

Mates 2.0 mm plug pins, bushing mount with metal threaded sleeve and round nut; Insulation: PA. Contact: lathed brass with optalloy finish, for 2.8 x 0.8 mm tab terminals. Rated voltage: 30 VAC/60 VDC. Rated current: max. 10 A.

Type: LB - I2 - R, yellow

Technical specifications
Rated current 10 A
Stackable No
Installation diameter 6.4 mm
Touch safe No
Version socket
Connection flat plug connection
Length 22 mm
diameter 2 mm
Colour yellow
Rated Voltage 30 VAC/60 VDC
Logistics
Original Packaging Bag with 50 pieces
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
