22.2672-22 | Stäubli Electrical Connectors
4 mm plug, solder connection, CAT II, red, 22.2672-22
This item is no longer available.
As an alternative, we recommend the following item:
4 mm jack, solder connection, 2.5 mm², CAT II/CAT III, red, 66.2051-22
Order No.: 22F7674
Manufacturer: Stäubli Electrical Connectors
per pc. 2.7013 € *

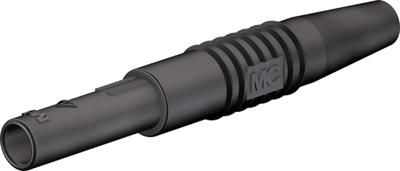

Plug, 22.2672-22, Stäubli Electrical Connectors
In-line, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve, for self-assembly of test leads. Solder connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 300 V | |
| Rated current | 19 A | |
| Rated category | CAT II | |
| diameter | 4 mm | |
| Stackable | No | |
| Connection | solder connection | |
| Colour | red | |
| Touch safe | No | |
| Length | 59.5 mm | |
| Version | plug | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
