22.2672-21 | Stäubli Electrical Connectors
4 mm plug, solder connection, CAT II, black, 22.2672-21
Order No.: 86F9369
EAN: 4099891758547
MPN:
22.2672-21
SLS410-BK SCHWARZ
This item is no longer available.
As an alternative, we recommend the following item:

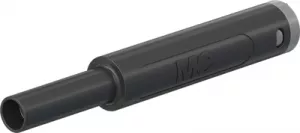

4 mm jack, solder connection, 2.5 mm², CAT II/CAT III, black, 66.2051-21
Order No.: 22F7673
Manufacturer: Stäubli Electrical Connectors
per pc. 2.7727 € *

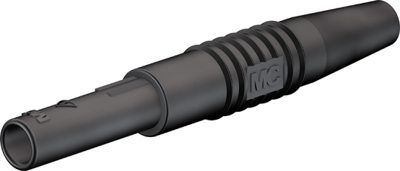

Plug, 22.2672-21, Stäubli Electrical Connectors
In-line, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve, for self-assembly of test leads. Solder connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| diameter | 4 mm | |
| Colour | black | |
| Connection | solder connection | |
| contact surface | gold-plated | |
| Rated Voltage | 300 V | |
| Rated current | 19 A | |
| Rated category | CAT II | |
| Touch safe | No | |
| Stackable | No | |
| Length | 59.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
