22.2667-20 | Stäubli Electrical Connectors
4 mm plug, solder connection, 2.5 mm², CAT II, yellow/green, 22.2667-20
Unit Price (€ / pc.)
4.5220 € *
Available: 51 pcs.
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5220 €
25 pcs.
3.9865 €
100 pcs.
3.4986 €
500 pcs.
3.3439 €
1000 pcs.
3.1416 €
*incl. VAT plus shipping costs
Subject to prior sale

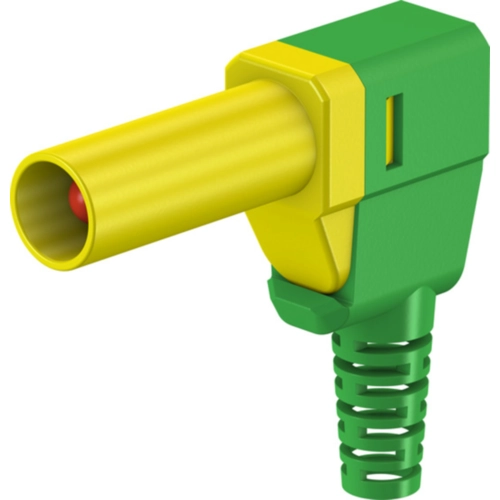

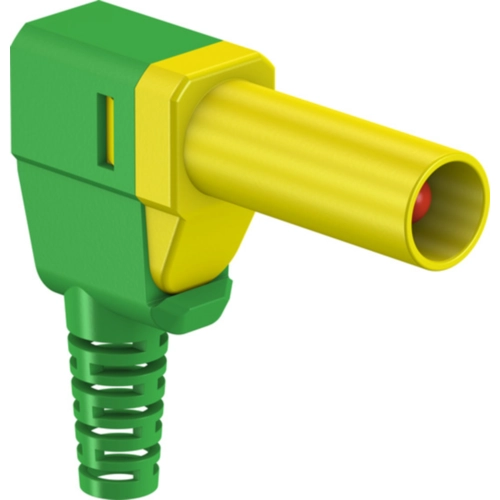

4 mm Plug, 22.2667-20, Stäubli Electrical Connectors
Right-angled, Ø 4 mm, with spring-loaded MULTILAM, for selfassembly of test leads. With rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow/green | |
| Length | 35.5 mm | |
| diameter | 4 mm | |
| Connection | solder connection | |
| Touch safe | No | |
| Rated category | CAT II | |
| Rated Voltage | 500 V | |
| Stackable | No | |
| Rated current | 32 A | |
| Version | plug | |
| max. Cable diameter | 3.9 mm | |
| Cable cross-section | 2.5 mm² | |
| contact surface | nickel-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
