22.2665-23 | Stäubli Electrical Connectors
4 mm plug, solder connection, 2.5 mm², CAT II, blue, 22.2665-23
Order No.: 86F8966
EAN: 4099889679205
MPN:
22.2665-23
SLS425-SL/N BLAU
This item is no longer available.
As an alternative, we recommend the following item:
4 mm plug, solder connection, 2.5 mm², CAT II/CAT III, blue, 66.2040-23
Order No.: 22F7602
Manufacturer: Stäubli Electrical Connectors
per pc. 1.9873 € *

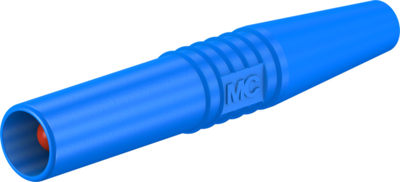

4 mm Plug, 22.2665-23, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| max. Cable diameter | 4.1 mm | |
| contact surface | nickel-plated | |
| Rated Voltage | 1000 V | |
| Touch safe | No | |
| Connection | solder connection | |
| Length | 50 mm | |
| Rated category | CAT II | |
| Stackable | No | |
| Rated current | 32 A | |
| Colour | blue | |
| Version | plug | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bag with 100 pieces |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
