22.2665-21 | Stäubli Electrical Connectors

4 mm plug, solder connection, 2.5 mm², CAT II, black, 22.2665-21

Order No.: 86F8964
EAN: 4099889679182
MPN:
22.2665-21
SLS425-SL/N SCHWARZ
22.2665-21 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
4 mm plug, solder connection, 2.5 mm², CAT II/CAT III, black, 66.2040-21
4 mm plug, solder connection, 2.5 mm², CAT II/CAT III, black, 66.2040-21
Order No.: 22F7600
Manufacturer: Stäubli Electrical Connectors
per pc. 1.8921 € *

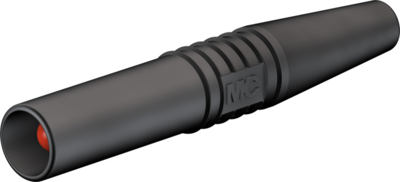

4 mm Plug, 22.2665-21, Stäubli Electrical Connectors

In-line, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve.

Technical specifications
Colour black
contact surface nickel-plated
max. Cable diameter 4.1 mm
diameter 4 mm
Length 50 mm
Cable cross-section 2.5 mm²
Stackable No
Touch safe No
Version plug
Connection solder connection
Rated Voltage 1000 V
Rated current 32 A
Rated category CAT II
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Replacement
