22.2663-21 | Stäubli Electrical Connectors
4 mm plug, solder connection, 2.5 mm², CAT II, black, 22.2663-21
Order No.: 86F8029
EAN: 4099889676211
MPN:
22.2663-21
SLS425-SL SCHWARZ
This item is no longer available.
As an alternative, we recommend the following item:
4 mm plug, solder connection, 2.5 mm², CAT II/CAT III, black, 66.2041-21
Order No.: 22F7603
Manufacturer: Stäubli Electrical Connectors
per pc. 2.5109 € *

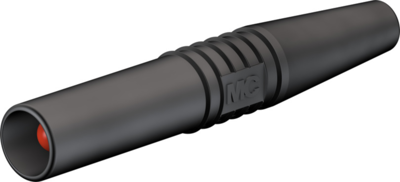

4 mm Plug, 22.2663-21, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads. With rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Cable diameter | 4.1 mm | |
| Rated current | 32 A | |
| contact surface | gold-plated | |
| Version | plug | |
| Touch safe | No | |
| Colour | black | |
| Rated category | CAT II | |
| Stackable | No | |
| Connection | solder connection | |
| Rated Voltage | 1000 V | |
| Length | 50 mm | |
| Cable cross-section | 2.5 mm² | |
| diameter | 4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
