22.2655-27 | Stäubli Electrical Connectors

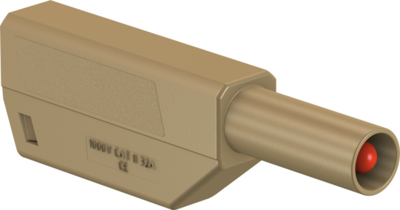

4 mm plug, solder connection, 0.75-2.5 mm², CAT II, brown, 22.2655-27
This item is no longer available.
As an alternative, we recommend the following item:
4 mm plug, solder connection, 2.5 mm², CAT II, CAT III, brown, 66.2023-27
Order No.: 22F7162
Manufacturer: Stäubli Electrical Connectors
per pc. 2.4633 € *
4 mm Plug, 22.2655-27, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM for self- assembly of test leads. Screw connection.
Technical specifications
| Connection | Lötanschluss | |
| Version | Stecker | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Colour | braun | |
| contact surface | vergoldet | |
| Length | 56.3 mm | |
| Cable cross-section | 0,75-2,5 mm² | |
| max. Cable diameter | 3.9 mm | |
| Rated category | CAT II | |
| Stackable | Yes |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
| Original Packaging | Beutel mit 100 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
