22.2654-20 | Stäubli Electrical Connectors

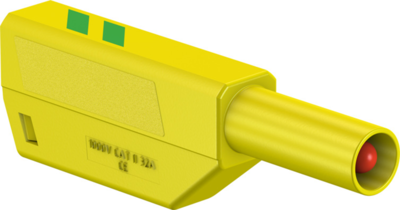

4 mm plug, solder connection, 0.75-2.5 mm², CAT II, yellow/green, 22.2654-20
Order No.: 86F8955
EAN: 4099889679090
MPN:
22.2654-20
SLS425-SE/N GRÜN/GELB
Series: Test & Measurement
This item is no longer available.
As an alternative, we recommend the following item:
4 mm plug, solder connection, 2.5 mm², CAT II, CAT III, yellow/green, 66.2022-20
Order No.: 22F7144
Manufacturer: Stäubli Electrical Connectors
per pc. 2.0468 € *
4 mm Plug, 22.2654-20, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Colour | yellow/green | |
| Rated current | 32 A | |
| Touch safe | No | |
| Length | 56.3 mm | |
| Stackable | Yes | |
| Rated category | CAT II | |
| diameter | 4 mm | |
| contact surface | nickel-plated | |
| Rated Voltage | 1000 V | |
| Version | plug | |
| max. Cable diameter | 3.9 mm | |
| Cable cross-section | 0.75-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
