22.2653-24 | Stäubli Electrical Connectors
4 mm plug, screw connection, 2.5 mm², yellow, 22.2653-24
No longer available from manufacturer
Unit Price (€ / pc.)
2.3443 € *
Available: 35 pcs.

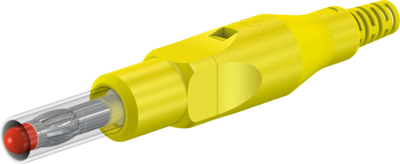

4 mm Plug, 22.2653-24, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads. With retractable sleeve to prevent accidental touching.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| contact surface | nickel-plated | |
| max. Cable diameter | 3.9 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| Stackable | No | |
| Cable cross-section | 2.5 mm² | |
| diameter | 4 mm | |
| Length | 75 mm | |
| Connection | screw connection | |
| Colour | yellow |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 100 pieces |
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
